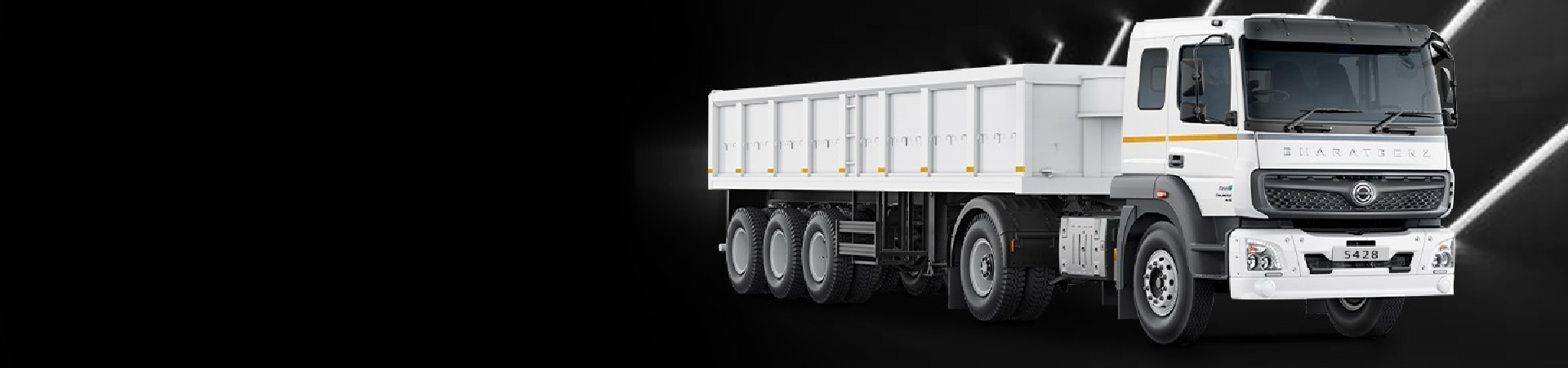

BharatBenz – 5428T



ModelOM 926
Maximum Power, kW210 kW @ 2200 rpm
Maximum Torque, Nm1100 Nm @ 1200 - 1600 rpm
No. of Cylinders, Displacement (CC)June 1, 7200
Emission ComplianceBharat Stage VI
Gearbox Model & TypeG 131, 9F+1R, Mechanical, Synchromesh Gears
Clutch TypeSingle Dry Plate, Hydraulic Control
Clutch Diameter (mm)430, 4.5 mm High Wear
Front Axle Model, TypeIF 7.0
Rear Axle Model, TypeMT36 610 (Hub Reduction)
Rear Axle Ratio*4.55
Dimensions (mm): All Dimensions are for CBC
Wheel Base (mm):3600
Loading Span (ft)/ Loadbody cpc (Cu.m):NA
Overall Length (mm):6063
Overall Width (mm):2490
Overall Height (mm) (CBC):2975
Front Overhang (mm):1485
Rear Overhang (mm):978
Minimum Ground Clearance (mm):304
Gross Combination Weight54,000 kgs with Suitable Three Axle Trailer - greater than 3m tridem axle spacing & air suspension on all three trailer axles
Chassis Frame, Suspension & Tyres
Frame Section (DxWxT) (mm)288 x 70 x 9
Front SuspensionParabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
Rear SuspensionSemi-Elliptical Leaf Spring
Anti Roll BarStandard on Front Axle
Brakes & Tyres
Service BrakePneumatic, Foot Operated, Dual Line with ABS
Parking BrakePneumatically Operated Hand Control Valve
Front Axle BrakeØ 410 drum
Rear Axle BrakeØ 410 drum
Tyre SizeRadial Tyre - 295/90R20,
Tubeless tyre with Rib & Lug - 295/80R22.5
Steering & Cabin
Steering TypeHydraulic Power Assisted
Fuel Tank & Electricals
Fuel Tank/ Filling Capacity455L/ 430L
Adblue Tank/ Filling Capacity60L/ 51L
Battery Capacity120Ah
Maximum Gradeability %23.16% (54t), 24.13% (52t), 25.2% (50t)
Maximum Geared Speed80 kmph
Turning Circle Diameter (TCD)*13.1 m
