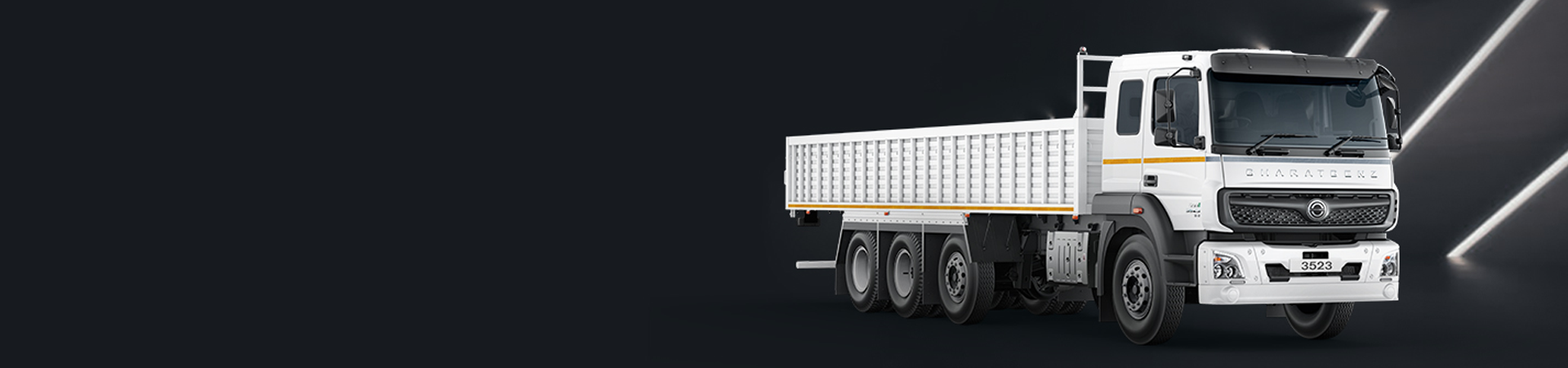

BHARATBENZ – 3523R

SPECIFICATIONS

Powertrain
Engine
ModelOM 926
Maximum Power, kW 180 kW @ 2200 rpm
Maximum Torque, Nm 850 Nm @ 1200 - 1600 rpm
No. of Cylinders, Displacement (CC) 6, 7200
Emission Compliance Bharat Stage VI
Gearbox

Gearbox Model & Type Improved G85, 6F+1R, Mechanical, Synchromesh Gears
Clutch Type Single Dry Plate, Hydraulic Control
Clutch Diameter (mm) 395, 4 mm
Axle
Front Axle Model, Type IF 7.0
Rear Axle Model, Type RA 1IR440-11 & RA2 IT-10
Rear Axle Ratio* 5.875
Dimensions (mm): All Dimensions are for CBC
Wheel Base (mm): 57756375 6375
Loading Span (ft)/ Loadbody cpc (Cu.m): 26 ft 28 ft 32 ft
Overall Length (mm): 10492 11092 11992
Overall Width (mm): 24902490 2490
Overall Height (mm) (CBC): 29602960 2960
Front Overhang (mm): 14851485 1485
Rear Overhang (mm): 255725573457
Minimum Ground Clearance (mm): 233233233
Weight
Gross Vehicle Weight 35000 kgs Tubeless & Radial Tyres
Chassis Frame, Suspension & Tyres
Frame Section (DxWxT) (mm) 286 x 70 x 8
Front Suspension Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers
Rear Suspension Balancer Type Semi-Elliptical Leaf Spring
Anti Roll Bar Front Standard, Rear applicable for High Centre of Gravity HCG,Front Standard, Rear applicable for Hazards Goods Pack HGP & High Centre of Gravity HCG,Front Standard, Rear applicable for High Centre of Gravity HCG
Brakes & Tyres
Service Brake Pneumatic, Foot Operated, Dual Line with ABS
Parking Brake Pneumatically Operated Hand Control Valve
Front Axle Brake Ø 410 drum
Rear Axle Brake Ø 410 drum
Tyre Size Radial Tyres (Rib & Lug Pattern - 295/90R20),
Tubeless Tyres (All Wheel Pattern - 295/80R22.5),
Tubeless Tyres (Rib & Lug Pattern - 295/80R22.5)
Steering & Cabin
Steering Type Hydraulic Power Assisted
Cabin: Sleeper Sleeper Compact Sleeper
Fuel Tank & Electricals
Fuel Tank/ Filling Capacity Standard - 380L/ 355L
Adblue Tank/ Filling Capacity 60L/ 51L
Voltage 24V
Battery Capacity 120Ah (Std) / 130Ah (For HAP)
Performance
Maximum Gradeability % 18.5%
Maximum Geared Speed 80 kmph Std
Turning Circle Diameter (TCD)* 21.6 m, 23.7 m, 23.7 m
