| PowerTrain | ||
|---|---|---|
| Engine | ||
| Model | OM926 | |
| Maximum Power, kW | 180kW @ 2200rpm | |
| Maximum Torque, Nm | 850NM @ 1200 -1600 rpm | |
| No. of Cylinder, Displacement | 6 cylinder, 7200 CC | |
| Emission Compliance | Bharat Stage VI | |
| Gearbox & Clutch | ||
| Gearbox Model & Type | G85 OD, 6 Speed Mechanical, Synchromesh Gears | |
| Clutch Type | Organic, Single dry plate | |
| Clutch Diameter (mm) | 395 mm | |
| Axle | ||
| Front Axle Model, Type | IF 7.0 | |
| Rear Axle Model, Type | IR440 | |
| Rear Axle Ratio | 4.77 | |
| Chassis Frame & Suspension | ||
| Frame Section (H x W x T) (mm) | 255 x 73.5 x 7 | |
| Suspension | Air | |
| Brakes & Tyres | ||
| Service Brake | Dual Circuit, full air, S-Cam type drum | |
| Parking Brake | Spring Actuated with Hand Brake Valve | |
| Auxillary Brake | Engine Brake + Exhaust Brake + Retarder (Optional) | |
| Tyre Size | 295 / 80 R22.5 tubeless tyres | |
| Steering | ||
| Steering Type | Power Steering, adjustable and tiltable | |
| Electricals | ||
| Battery Capacity | 2 x 12 V,200 Ah | |
| Voltage | 24 V | |
| Dimensions (Mm) | ||
| Wheel Base | 6850 | |
| Overall Length | 13196 | |
| Overall Width | 2530 | |
| Overall Height | 2335 | |
| Front Overhang | 2305 | |
| Rear Overhang | 4041 | |
| Minimum Ground Clearance | 239 | |
| Weight | ||
| Gross Vehicle Weight | 18500 kg | |
| Fuel Tank | ||
| Fuel Tank/Filling Capacity | 380 L/ 355 L | |
| Adblue Tank/Filling Capacity | 60 L/ 50 L | |

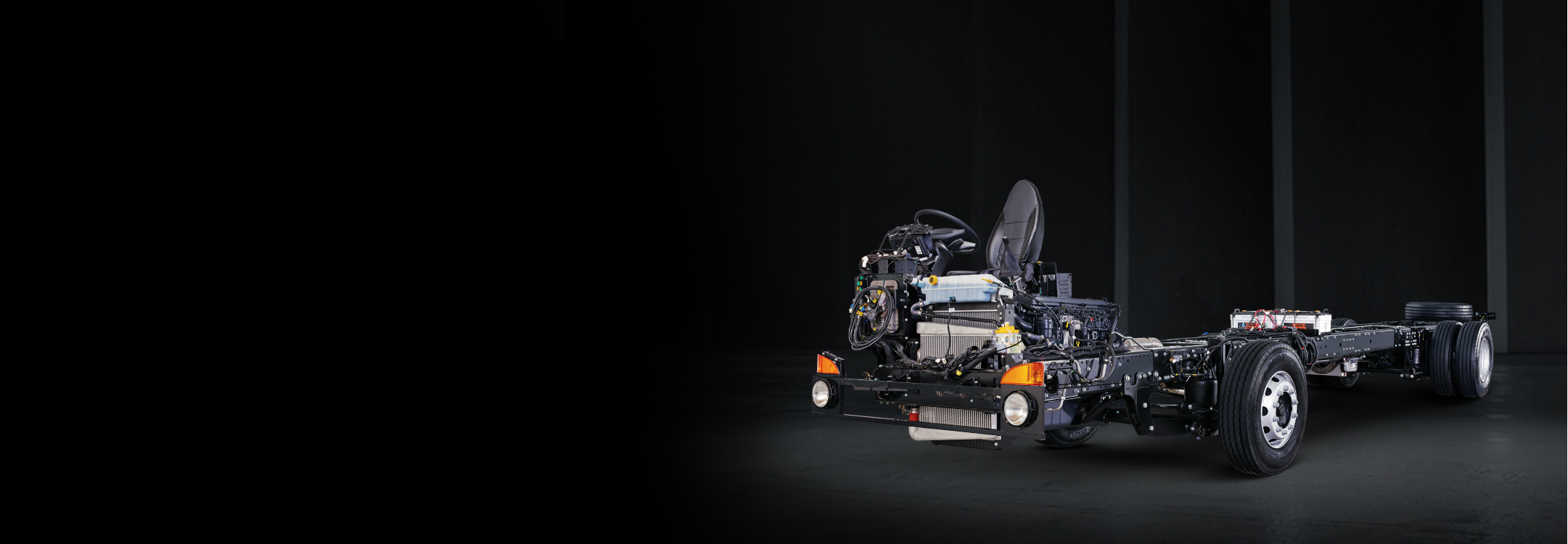

1824 Chassis
